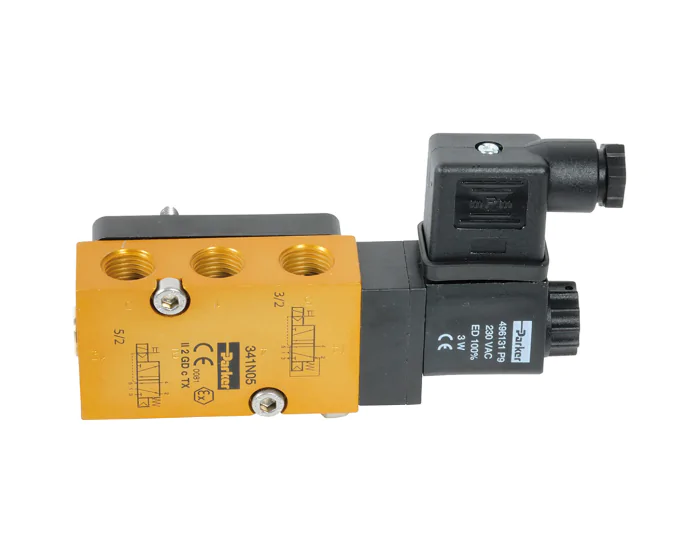

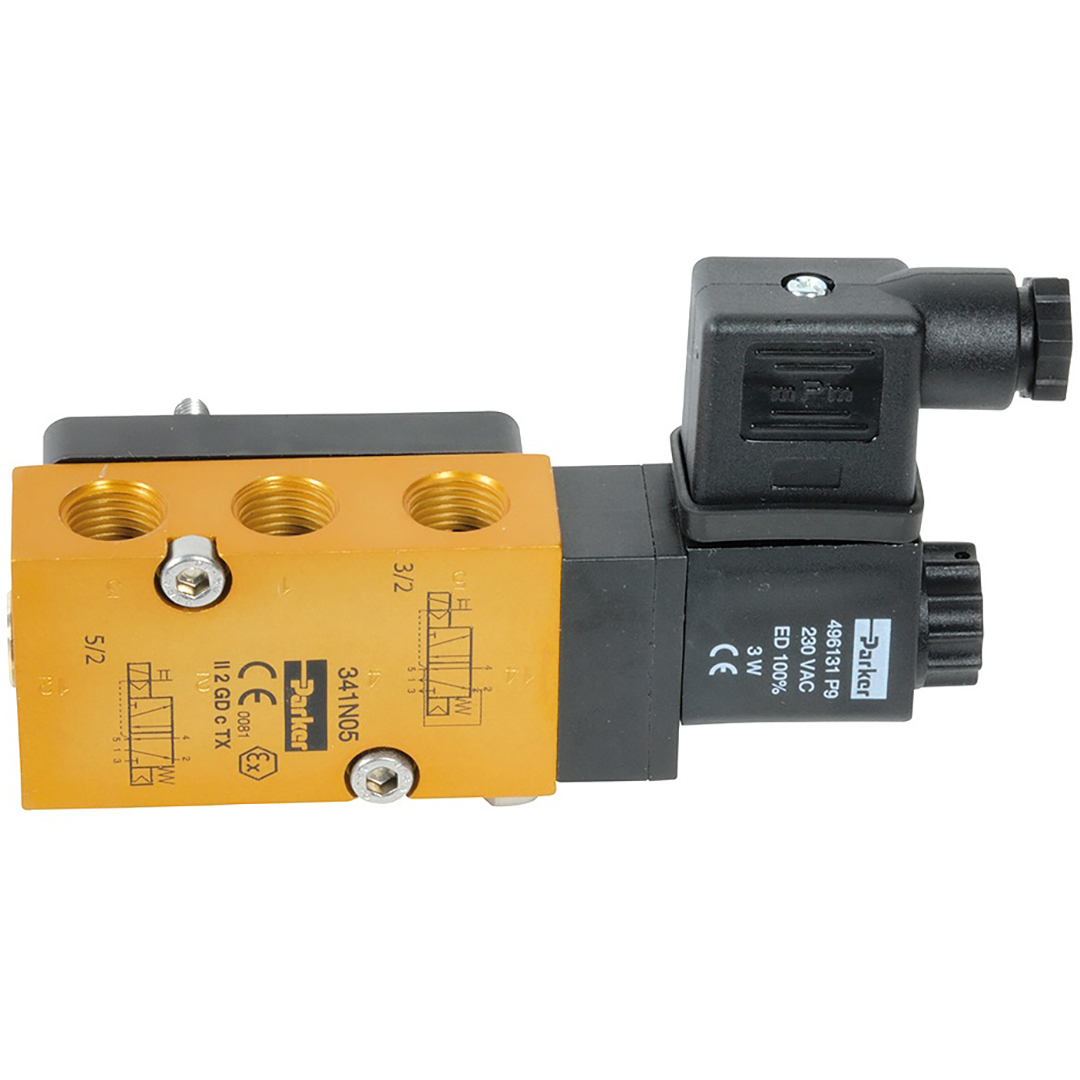

The Namur solenoid pilot valve 4212 monostable PARKER 341N05 3/2-5/2 ensures precise control of pneumatic actuators. It reliably switches between 3/2 and 5/2 configurations.
| Specification | Value |
|---|---|
| Maximum delta P (bar) | 10 |
| Minimum delta P (bar) | 2.5 |
| ATEX compatible | No |
| Connector | T22 |
| Fluid | Air / Neutral gases / Filtered |
| Protection index (IP) | IP 65 |
| Body material | Aluminium |
| Pilot (NAMUR) | Parker |
| PS (bar) | 10 |
| Voltage | 230 V AC |
| TS max (°C) | 50 |
| TS min (°C) | -10 |
| Solenoid pilot valve type | monostable |
| Solenoid pilot valve ways | 3/2 - 5/2 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Aluminium 230 V AC | 042120 | S1000970 |
€82.31
(excl. btw)
|
add to cart |
| Aluminium 24 V AC | 042121 | S1000971 |
€82.31
(excl. btw)
|
add to cart |
| Aluminium 48 V AC | 042122 | S1000972 |
€82.31
(excl. btw)
|
add to cart |
| Aluminium 110 V AC | 042123 | S1000973 |
€82.31
(excl. btw)
|
add to cart |
| Aluminium 24 V DC | 042125 | S1000974 |
€82.31
(excl. btw)
|
add to cart |
